How to make a code editor with CodeMirror 6

June 07, 2021 • 9 min read • JavaScript CodeMirror Code Editor

These days hands-on, in the browser, programming language tutorials are the standard. They all provide some kind of code editor. People learn by typing some code in those editors and instant feedback tells them the outcome.

What if you want to create such a platform? Especially one that works on a touchscreen and that is accessible? You want to create something like Codecademy, Educative, or Codewars? I do so that’s why I created Live JavaScript.

But now it’s time for an upgrade, so I started to see what code editor I should use there. I tried several code editors, but one stood out: CodeMirror. Marijn Haverbeke is doing a complete rewrite of the existing code base, and the new CodeMirror is a great piece of software. I hope this small guide will encourage you to give it a try.

By all means, this is not an exhaustive tutorial of CodeMirror 6. There are just too many things it can do. Maybe that is a problem, is a bit hard to find what you need. This is just a quick get-started guide.

Setup

CodeMirror 6 is published as a set of NPM packages under the @codemirror scope. Each package exposes ECMAScript and CommonJS modules. So we need to use some kind of bundler or loader to run them in the browser.

First, create a new folder for the project and initialize a new npm project inside:

npm init -y

Then install the CodeMirror6 packages:

npm i @codemirror/basic-setup @codemirror/lang-javascript

Now we can create the main editor file,editor.js, adding the following:

import { EditorState, EditorView, basicSetup } from "@codemirror/basic-setup";
import { javascript } from "@codemirror/lang-javascript";

let editor = new EditorView({
  state: EditorState.create({
    extensions: [basicSetup, javascript()],
  }),
  parent: document.body,
});

Let’s create a styles.css:

html,
body {
  margin: 0;
  padding: 0;
  background: #fff;
  color: #444;
  font-family: "Gill Sans", "Gill Sans MT", Calibri, "Trebuchet MS", sans-serif;
}

Finally let’s create an HTML file, index.html that uses the script bundle and the CSS file:

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>CodeMirror6</title>
    <link rel="stylesheet" href="styles.css" />
  </head>
  <body>
    <main>
      <h1>CodeMirror 6</h1>
      <div id="editor">
        <!-- code editor goes here  -->
      </div>
    </main>
    <script src="editor.bundle.js"></script>
  </body>
</html>

The editor.bundle.js is missing for the moment. We need to generate it from editor.js somehow. There are several ways, using a tool like Webpack or Rollup. Here we use Rollup.

Rollup

We need to install Rollup:

npm i rollup @rollup/plugin-node-resolve

Now let’s create a Rollup configuration file, called rollup.config.js:

import { nodeResolve } from "@rollup/plugin-node-resolve";
export default {
  input: "./editor.js",
  output: {
    file: "./editor.bundle.js",
    format: "iife",
  },
  plugins: [nodeResolve()],
};

To make things simple edit the package.json and add a "start": "rollup -c" script. package.json should be something like this:

{
  "name": "codemirror6",
  "version": "1.0.0",
  "description": "",
  "main": "index.js",
  "scripts": {
    "start": "rollup -c"
  },
  "author": "",
  "license": "ISC",
  "dependencies": {
    "@codemirror/basic-setup": "^0.18.2",
    "@codemirror/lang-javascript": "^0.18.0",
    "@rollup/plugin-node-resolve": "^13.0.0",
    "rollup": "^2.50.6"
  }
}

Build the bundle

Now, if everything is set up correctly we can run:

npm start

And this will generate the editor.bundle.js file.

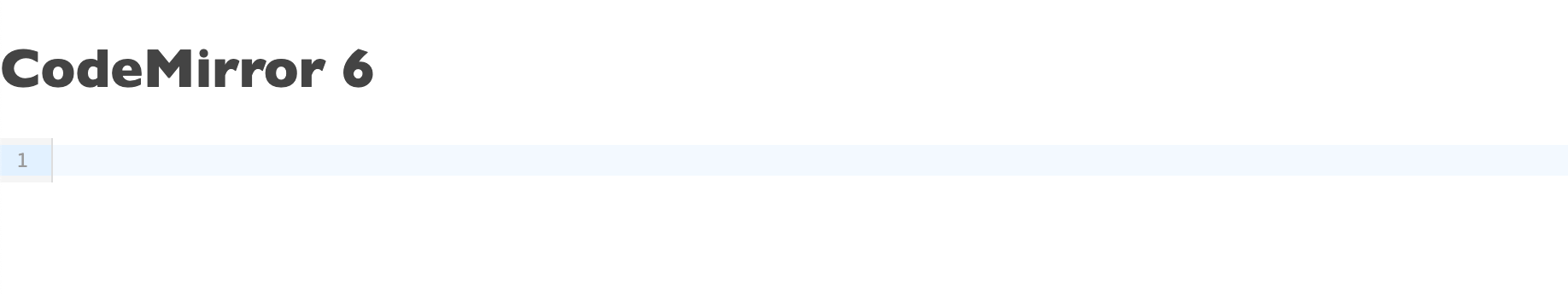

Open index.html in a browser and you’ll see a single line of the editor:

If we look at the source code, we can see that the editor was added in the body:

<div class="cm-editor cm-wrap ͼ1 ͼ2 ͼ4">
  <div aria-live="polite" style="position: absolute; top: -10000px;"></div>
  <div tabindex="-1" class="cm-scroller">
    <div
      class="cm-gutters"
      aria-hidden="true"
      style="position: sticky; min-height: 26px;"
    >
      <div class="cm-gutter cm-lineNumbers">
        <div
          class="cm-gutterElement"
          style="height: 0px; visibility: hidden; pointer-events: none;"
        >
          9
        </div>
        <div
          class="cm-gutterElement cm-activeLineGutter"
          style="height: 18px; margin-top: 4px;"
        >
          1
        </div>
      </div>
      <div class="cm-gutter cm-foldGutter">
        <div
          class="cm-gutterElement"
          style="height: 0px; visibility: hidden; pointer-events: none;"
        >
          <span title="Unfold line">›</span>
        </div>
        <div
          class="cm-gutterElement cm-activeLineGutter"
          style="height: 18px; margin-top: 4px;"
        ></div>
      </div>
    </div>
    <div
      spellcheck="false"
      autocorrect="off"
      autocapitalize="off"
      contenteditable="true"
      class="cm-content"
      style="tab-size: 4"
      role="textbox"
      aria-multiline="true"
      aria-autocomplete="list"
    >
      <div class="cm-activeLine cm-line"><br /></div>
    </div>
    <div class="cm-selectionLayer" aria-hidden="true"></div>
    <div
      class="cm-cursorLayer"
      aria-hidden="true"
      style="animation-duration: 1200ms;"
    >
      <div
        class="cm-cursor cm-cursor-primary"
        style="left: 34.8125px; top: 5px; height: 15px;"
      ></div>
    </div>
  </div>
</div>

CodeMirror

CodeMirror is a collection of modules that provide a full-featured text and code editor. This means that you can pick and choose which features you need, but setting up an editor requires you to put together a bunch of pieces.

Let’s go back to the editor.js source to see what is happening there:

import { EditorState, EditorView, basicSetup } from "@codemirror/basic-setup";
import { javascript } from "@codemirror/lang-javascript";

let editor = new EditorView({
  state: EditorState.create({
    extensions: [basicSetup, javascript()],
  }),
  parent: document.body,
});

There are two parts:

state (EditorState): which contains the data structures that model the editor state (the editor state is made up of a current document and a selection)
view (EditorView): which provides the UI of the editor.

The editor will be rendered inside the body. If you want it to render somewhere else you just need to change the element selector set to parent.

Language

A real code editor needs key bindings, highlighting, a line number gutter or an undo history, etc. While you can add each manually, CodeMirror provides a “basic-setup” package that includes all the functionality of a code editor. This is why we use “@codemirror/basic-setup”.

You can see that we also use the “@codemirror/lang-javascript” package. Since each programming language has its specific rules and features, we need to use the correct language package. This way we benefit from a parser, autocompletion, highlighting, and so on.

Before you can use a different language you need to install the corresponding package. Here are some examples:

npm i @codemirror/lang-html
npm i @codemirror/lang-css
npm i @codemirror/lang-json

When I’m writing this CodeMirror supports CSS, C++, HTML, Java, JavaScript, JSON, Markdown, Python, Rust, and XML.

Then you import and use the package,e.g. here is how to use the lang-html:

import { EditorState, EditorView, basicSetup } from "@codemirror/basic-setup";
import { html } from "@codemirror/lang-html";

let editor = new EditorView({
  state: EditorState.create({
    extensions: [basicSetup, html()],
  }),
  parent: document.body,
});

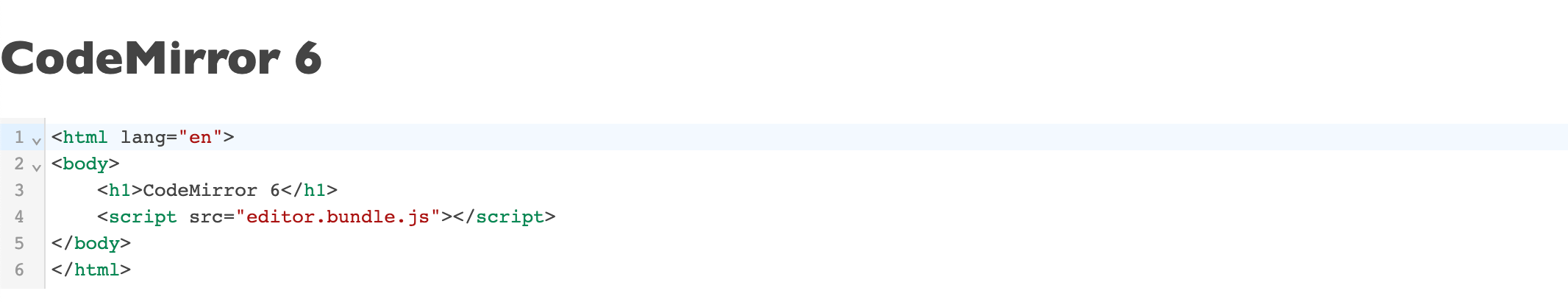

Document initial value

To set a start value for the editor you just need to set the state’s doc property to the value. For example, if the initial editor value is:

<html lang="en">
  <body>
    <h1>CodeMirror 6</h1>
    <script src="editor.bundle.js"></script>
  </body>
</html>

Then we set it as doc value:

import { EditorState, EditorView, basicSetup } from "@codemirror/basic-setup";
import { html } from "@codemirror/lang-html";

let editor = new EditorView({
  state: EditorState.create({
    extensions: [basicSetup, html()],
    doc: `<html lang="en">
<body>
    <h1>CodeMirror 6</h1>
    <script src="editor.bundle.js"></script>
</body>
</html>`,
  }),
  parent: document.body,
});

Reading and setting the document’s text

To read the current text displayed by the editor you do:

const currentValue = editor.state.doc.toString();

// <html lang="en">
// <body>
//    <h1>CodeMirror 6</h1>
//    <script src="editor.bundle.js"></script>
// </body>
// </html>

You can change the value in multiple ways by dispatching changes. DO NOT change the doc directly.

Inserting text

editor.dispatch({
  changes: { from: 0, insert: "<!DOCTYPE html>\n" },
});

// <!DOCTYPE html>
// <html lang="en">
// <body>
//    <h1>CodeMirror 6</h1>
//    <script src="editor.bundle.js"></script>
// </body>
// </html>

Replacing text

const currentValue = editor.state.doc.toString();
const startPosition = currentValue.indexOf("editor.bundle.js");
const endPosition = startPosition + "editor.bundle.js".length;

editor.dispatch({
  changes: {
    from: startPosition,
    to: endPosition,
    insert: "code-mirror-editor.js",
  },
});

// <!DOCTYPE html>
// <html lang="en">
// <body>
//    <h1>CodeMirror 6</h1>
//    <script src="code-mirror-editor.js"></script>
// </body>
// </html>

So to replace everything you just need to get the current text length:

const currentValue = editor.state.doc.toString();
const endPosition = currentValue.length;

editor.dispatch({
  changes: {
    from: 0,
    to: endPosition,
    insert: "something else",
  },
});

You can dispatch multiple changes at once if you need that, changes must be an array of individual changes.

Listen for changes

Usually, you want to listen for change and do something with the new code, for example, to reinterpret/evaluate the code. This is done by adding a updateListener to the editor view like this:

import {EditorState, EditorView, basicSetup} from "@codemirror/basic-setup"
import {html} from "@codemirror/lang-html"

let editor = new EditorView({
 state: EditorState.create({
   extensions: [
     basicSetup,
     html(),
     EditorView.updateListener.of((v)=> {
     if(v.docChanged) {
         console.log('DO SOMETHING WITH THE NEW CODE');
     }
   })]],
 }),
 parent: document.body
})

Of course, if you don’t want to do a lot of processing each time a key is pressed you need to use a timeout there:

import { EditorState, EditorView, basicSetup } from "@codemirror/basic-setup";
import { html } from "@codemirror/lang-html";

let timer;

let editor = new EditorView({
  state: EditorState.create({
    extensions: [
      basicSetup,
      html(),
      EditorView.updateListener.of((v) => {
        if (v.docChanged) {
          if (timer) clearTimeout(timer);
          timer = setTimeout(() => {
            console.log("DO SOMETHING WITH THE NEW CODE");
          }, 500);
        }
      }),
    ],
  }),
  parent: document.body,
});

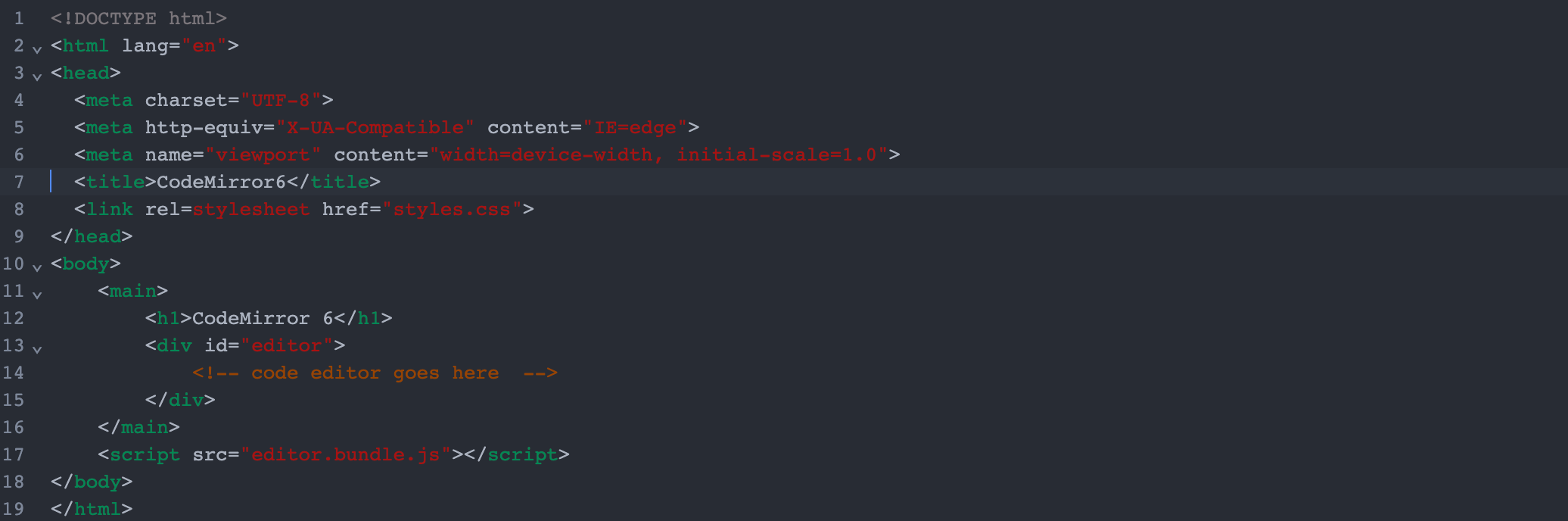

Themes

Themes, like anything else, can be provided as NPM packages. Or you can provide your theme. For the moment (CodeMirror6 is still in beta) there is only one dark theme you can install, One Dark:

npm i @codemirror/theme-one-dark

You can use a theme just like anything else: you import it and use it as an extension:

import { EditorState, EditorView, basicSetup } from "@codemirror/basic-setup";
import { html } from "@codemirror/lang-html";
import { oneDarkTheme } from "@codemirror/theme-one-dark";

let timer;

let editor = new EditorView({
  state: EditorState.create({
    extensions: [basicSetup, html(), oneDarkTheme],
  }),
  parent: document.body,
});

As I’ve said you can use your theme. CodeMirror 6 uses CSS-in-JS.

let myTheme = EditorView.theme(
  {
    "&": {
      color: "white",
      backgroundColor: "#034",
    },
    ".cm-content": {
      caretColor: "#0e9",
    },
    "&.cm-focused .cm-cursor": {
      borderLeftColor: "#0e9",
    },
    "&.cm-focused .cm-selectionBackground, ::selection": {
      backgroundColor: "#074",
    },
    ".cm-gutters": {
      backgroundColor: "#045",
      color: "#ddd",
      border: "none",
    },
  },
  { dark: true }
);

If you don’t want to provide styles for everything, you can extend the base theme and overwrite only parts of it. Here is an example that changes the editor font family and size:

import { EditorView } from "@codemirror/view";

const myTheme = EditorView.baseTheme({
  "&.cm-editor": {
    fontSize: "16px",
  },
  ".cm-scroller": {
    fontFamily:
      "Consolas, Menlo, Monaco, source-code-pro, Courier New, monospace",
  },
});

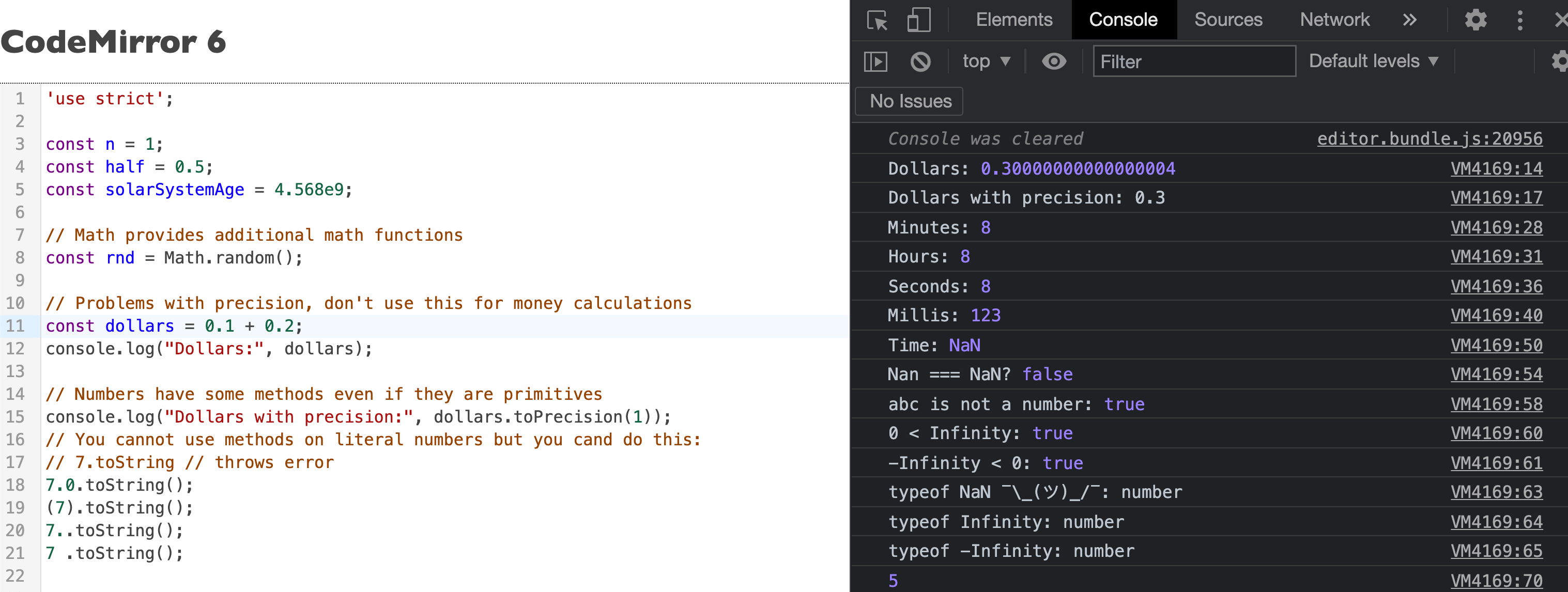

Putting all together

The only missing piece is a code evaluator, which for JavaScript is easy to do (since this runs in the browser). Just add some console.log() to see the results of the code execution on the browser’s DevTools console.

import { EditorState, EditorView, basicSetup } from "@codemirror/basic-setup";
import { javascript } from "@codemirror/lang-javascript";

const jscode = "";
const myTheme = EditorView.baseTheme({
  "&.cm-editor": {
    fontSize: "16px",
  },
  ".cm-scroller": {
    fontFamily:
      "Consolas, Menlo, Monaco, source-code-pro, Courier New, monospace",
  },
});

let timer;

const evaluateCode = (code) => {
  console.clear();
  try {
    Function(code)(window);
  } catch (err) {
    console.error(err);
  }
};

let editor = new EditorView({
  state: EditorState.create({
    extensions: [
      basicSetup,
      javascript(),
      myTheme,
      EditorView.updateListener.of((v) => {
        if (v.docChanged) {
          if (timer) clearTimeout(timer);
          timer = setTimeout(() => {
            evaluateCode(editor.state.doc.toString());
          }, 500);
        }
      }),
    ],
    doc: jscode,
  }),
  parent: document.body,
});

And that is all. You have a nice JavaScript playground that can be integrated into a bigger platform.
